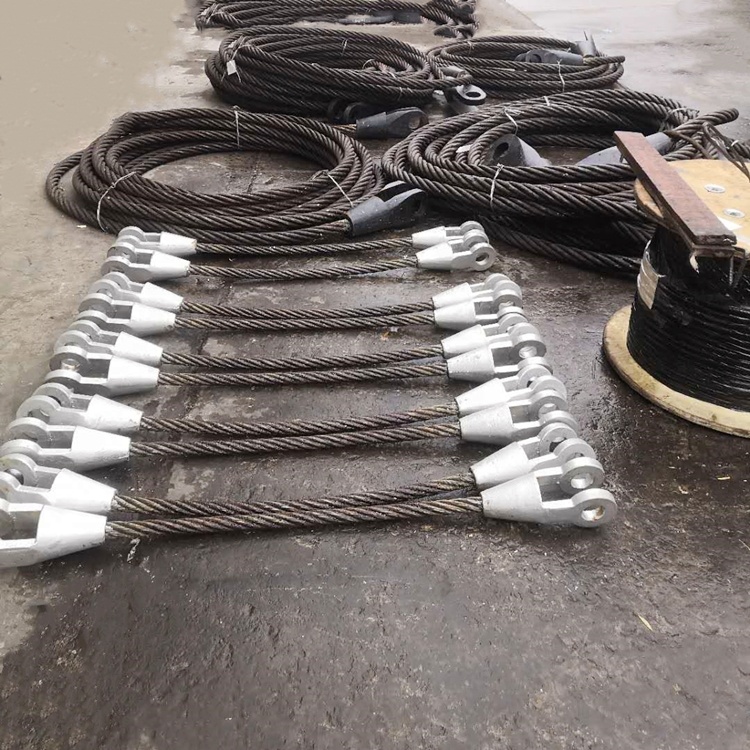

Steel Wire Rope Sling with Closed Spelter Sockets
|

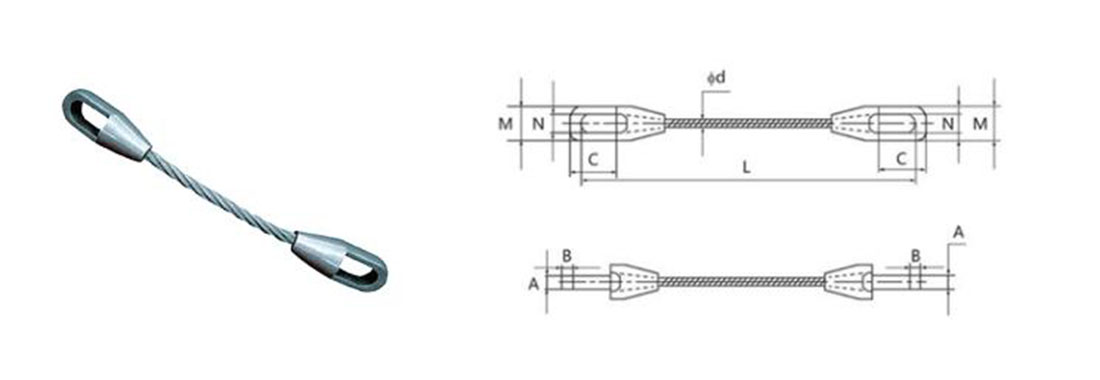

Rope Diamter |
A |
B |
C |
M |
N |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
Φ6-Φ7 |
14 |
14 |
57 |
40 |
22 |
|
Φ8-Φ10 |
18 |
16 |
67 |
43 |
25 |
|
Φ11-Φ13 |
22 |
19 |
75 |
51 |
30 |
|
Φ14-Φ16 |
26 |
21 |
84 |
67 |
36 |
|
Φ18 |
32 |
27 |
103 |
76 |
42 |
|
Φ20-Φ22 |
38 |
32 |
121 |
92 |
48 |
|
Φ24-Φ26 |
45 |
35 |
137 |
105 |
58 |
|
Φ28 |
50 |
38 |
152 |
114 |
65 |
|
Φ32-Φ36 |
55 |
41 |
168 |
135 |
71 |
|
Φ38 |
65 |
50 |
202 |
135 |
81 |
|
Φ40 |
70 |
54 |
219 |
146 |
83 |
|
Φ44-Φ48 |
75 |
56 |
248 |
171 |
95 |
|
Φ52-Φ54 |
83 |
62 |
279 |
194 |
111 |
|
Φ56-Φ60 |
92 |
67 |
308 |
216 |
127 |
|
Φ64-Φ66 |
102 |
79 |
349 |
241 |
140 |
|
Φ70-Φ74 |
124 |
79 |
365 |
273 |
159 |
|
Φ76-Φ80 |
133 |
83 |
381 |
292 |
171 |
|
Φ82-Φ86 |
146 |
102 |
413 |
311 |
184 |
|
Φ88-Φ92 |
159 |
102 |
432 |
330 |
197 |
|
Φ95-Φ102 |
178 |
106 |
464 |
362 |
216 |
|
Φ110 |
200 |
123 |
535 |
404 |
244 |
Wire rope sockets are termination components that are permanently fixed to the ends of wire rope as part of an anchoring system.
They are integral anywhere wire rope is used for support or movement such as suspension bridge, roof, and oil rig construction scenarios that require rigging tow ropes, anchor ropes, and cables.

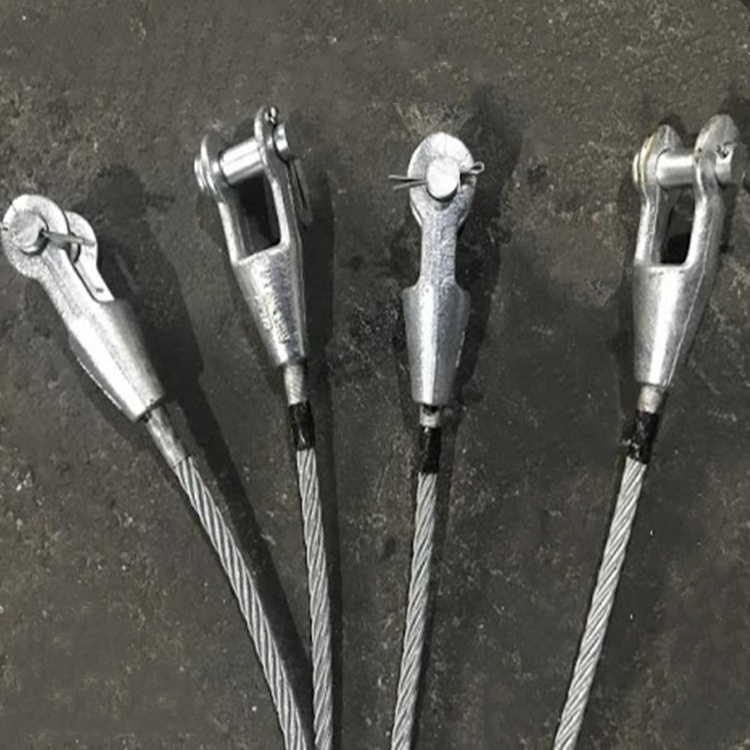

Most wire rope sockets come in open or closed varieties.
Open sockets have a pin or bolt to accommodate a hook block or other type of fitting.

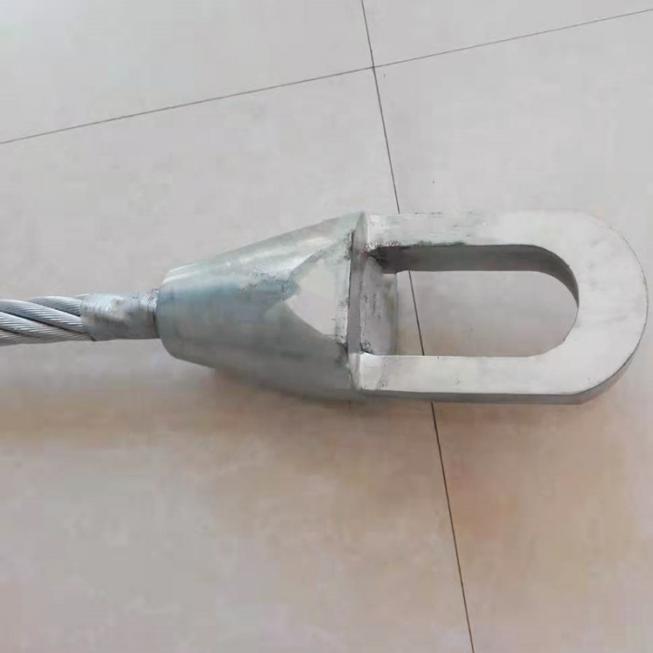

Closed sockets form a hole designed to accept a pin or bolt.
Wire rope and termination sockets are an essential component of construction and mechanical systems that require tension or support.
As long as they are matched correctly to the size and material of wire rope and professionally installed, they form part of a strong mechanism for lifting, hauling, and supporting heavy loads.
