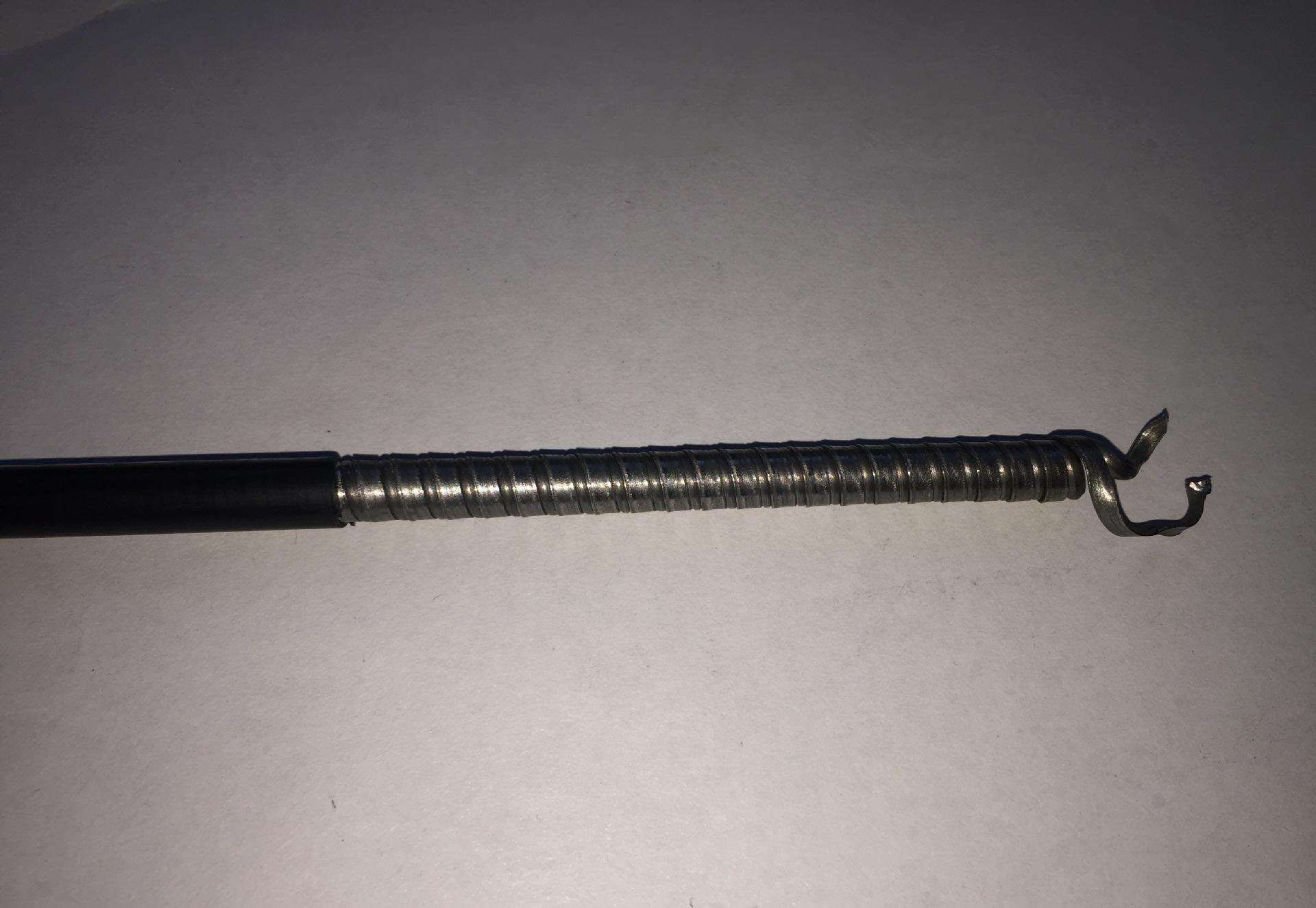

Oil tempered steel wire for push-pull and brake cable
Product Information
|
1 |
Product Name |
Oil tempered steel wire |
|
2 |
Material |
Carbon steel and Alloy steel |
|
3 |
Size |
2mm-15mm |
|
4 |
Packing |
Waterproof membrane + PVC + steel truss or asper your customers' requirement. |
|
5 |
Standard |
B/T18983,ASTM A401,etc. |
|
6 |
Advantage |
1).High yield ratio, small residual deformation of the spring. 2.)Stable performance: with the disc less than 75Mpa is conducive to coil spring and improve spring fatigue life. |
|
7 |
Application |
Railway fastener,Spring steel,Suspension spring steel |
Product Specification
|
Diameter |
Tensile strength (MPa) |
Reduction of area |
|||||
|
FDC |
FDCrV-A |
FDCrV-B |
FDSiMn |
FDCrSi |
%≥ |
||
|
TDC |
TDCrV-A |
TDCrV-B |
TDSiMn |
TDCrSi |
FD |
TD |
|
|
0.5-0.8 |
1800-2100 |
1800-2100 |
1900-2200 |
1850-2100 |
2000-2250 |
/ |
|
|
>0.8-1.0 |
1800-2060 |
1780-2080 |
1860-2160 |
1850-2100 |
2000-2250 |
/ |
|
|
>1.0-1.3 |
1800-2010 |
1750-2010 |
1850-2100 |
1850-2100 |
2000-2250 |
45 |
45 |
|
>1.3-1.4 |
1750-1950 |
1750-1990 |
1840-2070 |
1850-2100 |
2000-2250 |
45 |
45 |
|
>1.4-1.6 |
1740-1890 |
1710-1950 |
1820-2030 |
1850-2100 |
2000-2250 |
45 |
45 |
|
>1.6-2.0 |
1720-1890 |
1710-1890 |
1790-1970 |
1820-2000 |
2000-2250 |
45 |
45 |
|
>2.0-2.5 |
1670-1820 |
1670-1830 |
1750-1900 |
1800-1950 |
1970-2140 |
45 |
45 |
|
>2.5-2.7 |
1640-1790 |
1660-1820 |
1720-1870 |
1780-1930 |
1950-2120 |
45 |
45 |
|
>2.7-3.0 |
1620-1770 |
1630-1780 |
1700-1850 |
1760-1910 |
1930-2100 |
45 |
45 |
|
>3.0-3.2 |
1600-1750 |
1610-1760 |
1680-1830 |
1740-1890 |
1910-2080 |
40 |
45 |
|
>3.2-3.5 |
1580-1730 |
1600-1750 |
1660-1810 |
1720-1870 |
1900-2060 |
40 |
45 |
|
>3.5-4.0 |
1550-1700 |
1560-1710 |
1620-1770 |
1710-1860 |
1870-2030 |
40 |
45 |
|
>4.0-4.2 |
1540-1690 |
1540-1690 |
1610-1760 |
1700-1850 |
1860-2020 |
40 |
45 |
|
>4.2-4.5 |
1520-1670 |
1520-1670 |
1590-1740 |
1690-1840 |
1850-2000 |
40 |
45 |
|
>4.5-4.7 |
1510-1660 |
1510-1660 |
1580-1730 |
1680-1830 |
1840-1990 |
40 |
45 |
|
>4.7-5.0 |
1500-1650 |
1500-1650 |
1560-1710 |
1670-1820 |
1830-1980 |
40 |
45 |
|
>5.0-5.6 |
1470-1620 |
1460-1610 |
1540-1690 |
1660-1810 |
1800-1950 |
35 |
40 |
|
>5.6-6.0 |
1460-1610 |
1440-1590 |
1520-1670 |
1650-1800 |
1780-1930 |
35 |
40 |
|
>6.0-6.5 |
1440-1590 |
1420-1570 |
1510-1660 |
1640-1790 |
1760-1910 |
35 |
40 |
|
>6.5-7.0 |
1430-1580 |
1400-1550 |
1500-1650 |
1630-1780 |
1740-1890 |
35 |
40 |
|
>7.0-8.0 |
1400-1550 |
1380-1530 |
1480-1630 |
1620-1770 |
1710-1860 |
35 |
40 |
|
>8.0-9.0 |
1380-1530 |
1370-1520 |
1470-1620 |
1610-1760 |
1700-1850 |
30 |
35 |
|
>9.0-10.0 |
1360-1510 |
1350-1500 |
1450-1600 |
1600-1750 |
1660-1810 |
30 |
35 |
|
>10.0-12.0 |
1320-1470 |
1320-1470 |
1430-1580 |
1580-1730 |
1660-1810 |
30 |
/ |
|
>12.0-14.0 |
1280-1430 |
1300-1450 |
1420-1570 |
1560-1710 |
1620-1770 |
30 |
/ |
|
>14.0-15.0 |
1270-1420 |
1290-1440 |
1410-1560 |
1550-1700 |
1620-1770 |
/ |
|
|
>15.0-17.0 |
1250-1400 |
1270-1420 |
1400-1550 |
1540-1690 |
1580-1730 |
/ |
|
Chemical Component
|
Alloy steel |
|
|
|
|
|
|
|
Material |
C% |
Si |
Mn% |
Cr |
V |
S,P |
|
55CrSi |
0.50-0.60 |
1.20-1.60 |
0.50-0.80 |
0.50-0.80 |
/ |
<0.030 |
|
60Si2Mn |
0.56-0.64 |
1.60-2.0 |
0.60-0.90 |
0.35 |
/ |
<0.035 |
|
60Si2MnA |
0.56-0.64 |
1.60-2.0 |
0.60-0.90 |
0.35 |
/ |
<0.030 |
|
60Si2CrA |
0.56-0.64 |
1.40-1.80 |
0.40-0.70 |
0.70-1.00 |
/ |
<0.030 |
|
60Si2CrVA |
0.56-0.64 |
1.40-1.80 |
0.40-0.70 |
0.90-1.2 |
0.10-0.20 |
<0.030 |
|
55CrMnA |
0.52-0.60 |
0.17-0.37 |
0.65-0.95 |
0.65-0.95 |
/ |
<0.030 |
|
50CrV |
0.46-0.54 |
0.17-0.37 |
0.50-0.80 |
0.80-1.10 |
0.10-0.20 |
<0.030 |

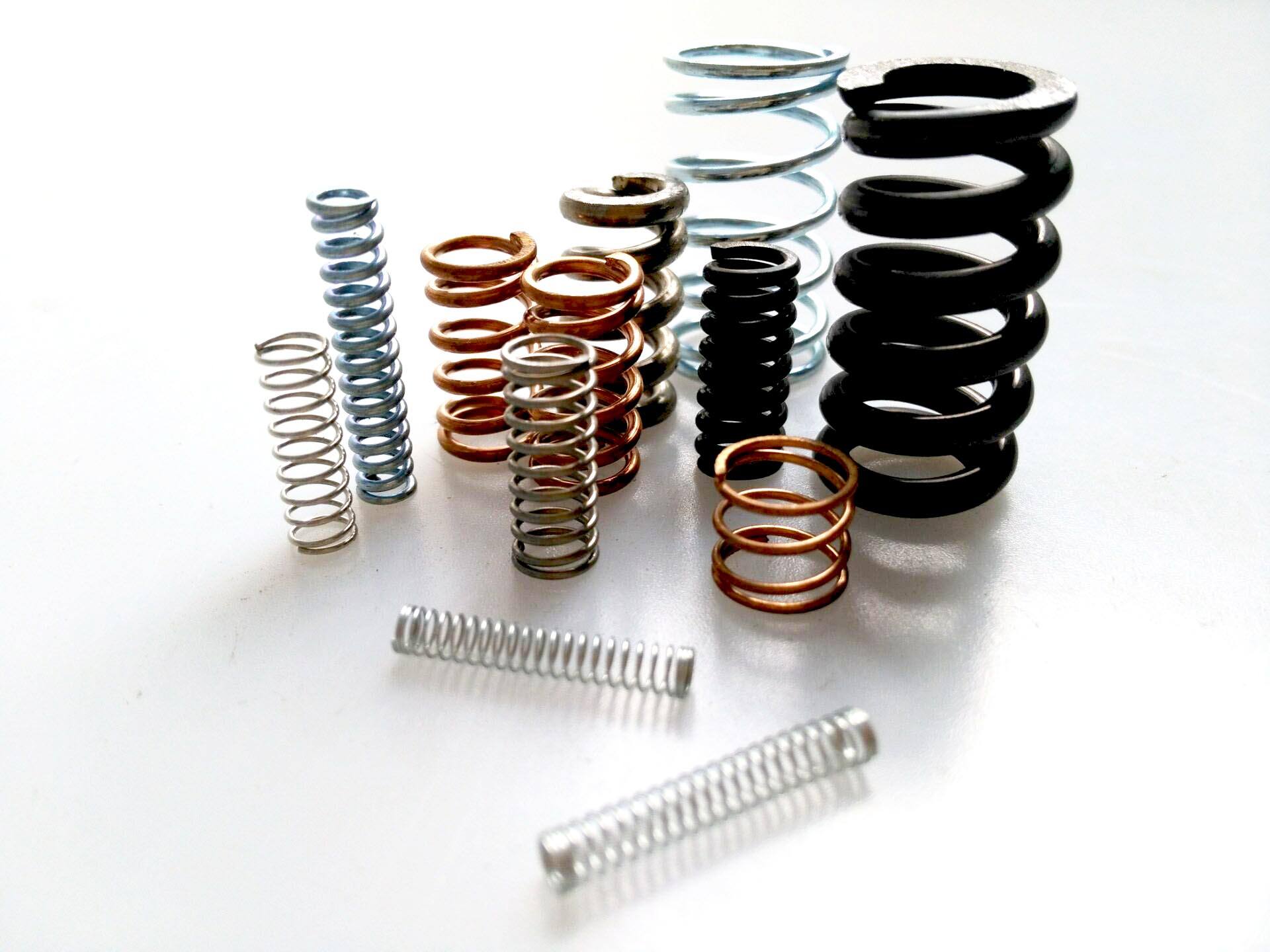

Application
