General Engineering ropes/galvanized and un-galvanized steel wire rope

Short Description:

Finish:galvanized or bright

Application: CONSTURCTION, MACHINERY,SLING

Product Description : The wire ropes shown here are suitable for a wide variety of applications including slings, winch and hoist ropes, & construction.

Send email to us

Product Detail

Product Tags

Product parameters

1-7

1-19

1-37

6-7

6-19

6-36WS

1-7

Construction
Nominal Diameter	Approximate Weight	Mini.Breaking Load Corresponding To Rope Grade Of
Nominal Diameter	Approximate Weight	1570	1670	1770	1870
MM	KG/100M	KN	KN	KN	KN
0.6	0.19	0.31	0.32	0.34	0.36
1.2	0.75	1.22	1.3	1.38	1.45
1.5	1.17	1.91	2.03	2.15	2.27
1.8	1.69	2.75	2.92	3.1	3.27
2.1	2.3	3.74	3.98	4.22	4.45
2.4	3.01	4.88	5.19	5.51	5.82
2.7	3.8	6.18	6.57	5.97	7.36
3	4.7	7.63	8.12	8.6	9.09
3.3	5.68	9.23	9.82	10.4	11
3.6	6.77	11	11.7	12.4	13.1
3.9	7.94	12.9	13.7	14.5	15.4
4.2	9.21	15	15.9	16.9	17.8
4.5	10.6	17.2	18.3	19.4	20.4
4.8	12	19.5	20.8	22	23.3
5.1	13.6	22.1	23.5	24.9	26.3
5.4	15.2	24.7	26.3	27.9	29.4
6	18.8	30.5	32.5	34.4	36.4
6.6	22.7	36.9	39.3	41.6	44
7.2	27.1	43.9	46.7	49.5	52.3
7.8	31.8	51.6	54.9	58.2	61.4
8.4	36.8	59.8	63.6	67.4	71.3
9	42.3	68.7	73	77.4	81.8
9.6	48.1	78.1	83.1	88.1	93.1
10.5	57.6	93.5	99.4	105	111
11.5	69	112	119	126	134
12	75.2	122	130	138	145

1-19

Constrcution
Nominal Diameter	Approximate Weight	Mini.Breaking Load Corresponding To Rope Grade Of
Nominal Diameter	Approximate Weight	1570	1670	1770	1870
MM	KG/100M	KN	KN	KN	KN
1	0.51	0.83	0.89	0.94	0.99
1.5	1.14	1.87	1.99	2.11	2.23
2	2.03	3.33	3.54	3.75	3.96
2.5	3.17	5.2	5.53	5.86	6.19
3	4.56	7.49	7.97	8.44	8.92
3.5	6.21	10.2	10.8	11.5	12.1
4	8.11	13.3	14.2	15	15.9
4.5	10.3	16.9	17.9	19	20.1
5	12.7	20.8	22.1	23.5	24.8
5.5	15.3	25.2	26.8	28.4	30
6	18.3	30	31.9	33.8	35.7
6.5	21.4	35.2	37.4	39.6	41.9
7	24.8	40.8	43.4	46	48.6
7.5	28.5	46.8	49.8	52.8	55.7
8	32.4	56.6	56.6	60	63.4
8.5	36.6	60.1	63.9	67.8	71.6
9	41.1	67.4	71.7	76	80.3
10	50.7	83.2	88.6	93.8	99.1
11	61.3	101	107	114	120
12	73	120	127	135	143
13	85.7	141	150	159	167
14	99.4	163	173	184	194
15	114	187	199	211	223
16	130	213	227	240	254

1-37

Construction
Nominal Diameter	Approximate Weight	Mini.Breaking Load Corresponding To Rope Grade Of
Nominal Diameter	Approximate Weight	1570	1670	1770	1870
MM	KG/100M	KN	KN	KN	KN
1.4	0.98	1.51	1.6	1.7	1.9
2.1	2.21	3.39	3.61	3.82	4
2.8	3.93	6.03	6.42	6.8	7.18
3.5	6.14	9.42	10	10.6	11.2
4.2	8.84	13.6	14.4	15.3	16.2
4.9	12	18.5	19.6	20.8	22
5.6	15.7	24.1	25.7	27.2	28.7
6.3	19.9	30.5	32.5	34.4	36.4
7	24.5	37.7	40.1	42.5	44.9
7.7	29.7	45.6	48.5	51.4	54.3
8.4	35.4	54.3	57.7	61.2	64.7
9.1	41.5	63.7	67.8	71.8	75.9
9.8	48.1	73.9	78.6	83.3	88
10.5	55.2	84.8	90.2	95.6	101
11	60.6	93.1	99	105	111
12	72.1	111	118	125	132
12.5	78.3	120	128	136	143
14	98.2	151	160	170	180
15.5	120	185	197	208	220
17	145	222	236	251	265
18	162	249	265	281	297
19.5	191	292	311	330	348
21	221	339	361	382	404
22.5	254	389	414	439	464

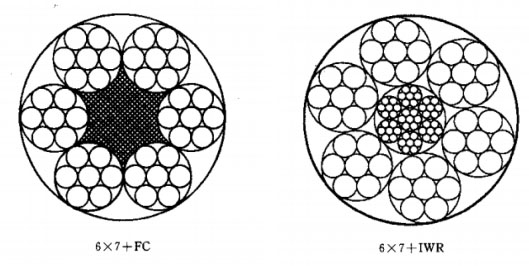

6-7

Construction
Nominal Diameter	Approximate Weight		Minimum Breaking Load Corresponding To Rope Grade Of
	Fiber Core	Steel Core	1570		1770		1960
	FC	IWRC	FC	IWRC	FC	IWRC	FC	IWRC
MM	KG/100M	KN	KN	KN	KN	KN	KN	KN
2	1.43	1.57			2.4	2.5	2.6	2.8
3	3.22	3.54			5.3	5.7	5.9	6.3
4	5.72	6.29			9.4	10.2	10.4	11.3
5	8.94	9.83			14.7	15.9	15.3	17.6
6	12.9	14.9			21	23	23	25
7	17.5	19.3			20	31	32	34
8	22.9	25.2	33	36	38	41	42	45
9	28.9	31.8	42	45	48	51	53	57
10	35.7	39.3	52	56	59	63	65	70
11	43.2	47.6	63	68	71	77	79	85
12	51.5	56.6	75	81	85	91	94	101
13	60.4	66.4	88	95	99	107	110	119
14	70.1	77	102	110	115	124	128	138
16	91.5	101	133	144	151	162	167	180
18	116	127	169	182	190	206	211	228
19	129	142	188	203	212	229	235	254
20	143	157	209	225	235	254	260	281
22	173	190	252	273	285	307	315	340
24	206	227	300	324	339	366	375	405
26	242	266	352	381	397	429	440	475
28	280	308	409	441	461	498	510	551
32	366	403	534	577	602	650	667	721
36	463	509	676	730	762	823	844	911
40	572	629	834	901	941	1016	1042	1125

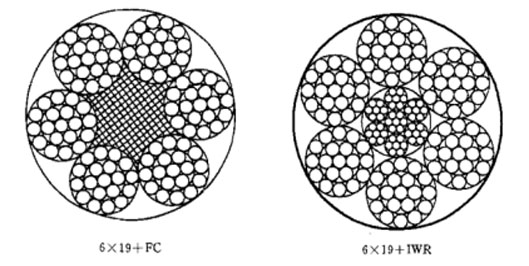

6-19

Construction
Nominal Diameter	Approximate Weight		Minimum Breaking Load Corresponding To Rope Grade Of
	Fiber Core	Steel Core	1570		1670		1770		1870
	FC	IWRC	FC	IWRC	FC	IWRC	FC	IWRC	FC	IWRC
MM	KG/100M	KN	KN	KN	KN	KN	KN	KN	KN	KN
3	3.11	3.43	4.34	4.69	4.61	4.99	4.89	5.29	5.17	5.39
4	5.54	6.09	7.71	8.34	8.2	8.87	8.69	9.4	9.19	9.93
5	8.65	9.52	12	13	12.8	13.9	13.6	14.7	14.4	15.5
6	12.5	13.7	17.4	18.8	18.5	20	19.6	21.2	20.4	22.4
7	17	18.8	23.6	25.5	25.1	27.2	26.6	28.8	28.1	30.4
8	22.1	24.4	30.8	33.4	32.8	35.5	34.8	37.6	36.7	39.7
9	28	30.8	39	42.2	41.6	44.9	44	47.6	46.5	50.3
10	34.6	38.1	48.2	52.1	51.3	55.4	54.4	58.8	57.4	62.1
11	41.9	46.1	58.3	63.1	62	67.1	65.8	71.1	69.5	75.1
12	49.8	54.8	69.4	75.1	73.8	79.8	78.2	84.6	82.7	89.4
13	58.5	65.3	81.5	88.1	86.6	93.7	91.8	99.3	97	105
14	67.8	74.6	94.5	102	100	109	107	115	113	122
16	88.6	97.4	123	133	131	142	139	150	147	159
18	112	123	156	169	166	180	176	190	186	201
20	125	137	193	208	205	222	217	235	230	248
22	138	152	233	252	248	268	263	284	278	300
24	167	184	278	300	295	319	313	338	331	358
26	199	219	326	352	346	375	367	397	388	420
28	234	257	378	409	402	435	426	461	450	487
30	271	298	434	469	461	499	489	529	517	559
32	354	390	494	534	525	568	557	602	588	636
34	448	493	557	603	593	641	628	679	664	718
36	500	550	625	676	664	719	704	762	744	805
38	554	609	696	753	740	801	785	849	829	896
40	670	-	771	834	820	887	869	940	919	993
42	797	-	850	919	904	978	959	1040	1010	1100
44	936		933	1010	993	1070	1050	1140	1110	1200
46			1020	1100	1080	1170	1150	1240	1210	1310

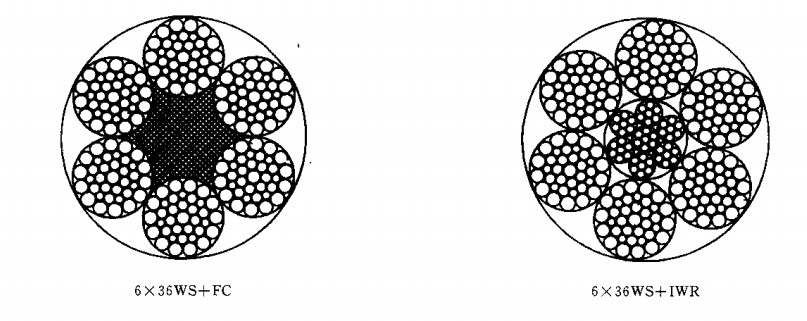

6-36WS

Construction
Nominal Diameter	Approximate Weight		Minimum Breaking Load Corresponding To Rope Grade Of
	Fiber Core	Steel Core	IP/1770 grade		EIP/1960 grade		EEIP/2160 grade
	FC	IWRC	FC	SC	FC	SC	FC	SC
MM	KG/100M	KN	KN	KN	KN	KN	KN	KN
8	24.3	26.8	37	40	41	45	46	49
9	30.8	33.9	47	51	52	57	58	62
10	38	41.8	58	63	65	70	71	77
11	46	50.6	71	76	78	85	86	93
12	54.7	60.2	84	91	93	101	103	111
13	64.3	70.7	99	107	109	118	120	130
14	74.5	82.0	114	124	127	137	140	151
16	97.3	107.1	149	161	166	179	182	197
18	123	135	189	204	209	226	231	249
19	137	151	211	228	233	252	257	278
20	152	167	234	252	259	279	285	308
22	184	202	283	305	313	338	345	372
24	219	241	336	363	372	402	410	443
26	257	283	395	426	437	472	482	520
28	298	328	458	494	507	548	559	603
30	342	376	525	568	582	629	641	693
32	389	428	598	646	662	715	730	788
34	439	483	675	729	747	807	824	890
36	493	542	757	817	838	905	924	997
38	549	604	843	911	934	1008	1029	1111
40	608	669	934	1009	1035	1117	1140	1231
44	736	810	1130	1221	1252	1352	1380	1490
46	804	885	1235	1334	1368	1478	1508	1628
48	876	964	1345	1453	1490	1609	1642	1773
52	1028	1131	1579	1705	1748	1888	1927	2081
56	1192	1311	1831	1978	2028	2190	2235	2413
60	1369	1506	2102	2270	2328	2514	2565	2771
64	1557	1713	2392	2583	2648	2860	2919	3152
68	1758	1934	2700	2916	2990	3229	3295	3559
70	1863	2049	2861	3090	3168	3422	3492	3771
72	1971	2168	3027	3269	3352	3620	3694	3990
76	2196	2416	3373	3643	3735	4034	4116	4445
78	2313	2544	3553	3837	3934	4249	4335	4682
80	2433	2676	3737	4036	4138	4469	4561	4925
84	2683	2951	4120	4450	4562	4928	5028	5430
86	2812	3093	4319	4664	4782	5165	5270	5692
88	2944	3239	4522	4884	5007	5408	5518	5960
90	3080	3387	4730	5108	5237	5657	5772	6234
92	3218	3540	4942	5338	5473	5911	6031	6514
NOTE:- Rope sizes not shown in the table may be available and details can be furnished on request.

Application
